China wood shaving machine,wood shavings making machine, wood shavings press baler
Wood Shaving Machine
Technical Specifications:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 8 | 16 | 24 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
|
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |
|||

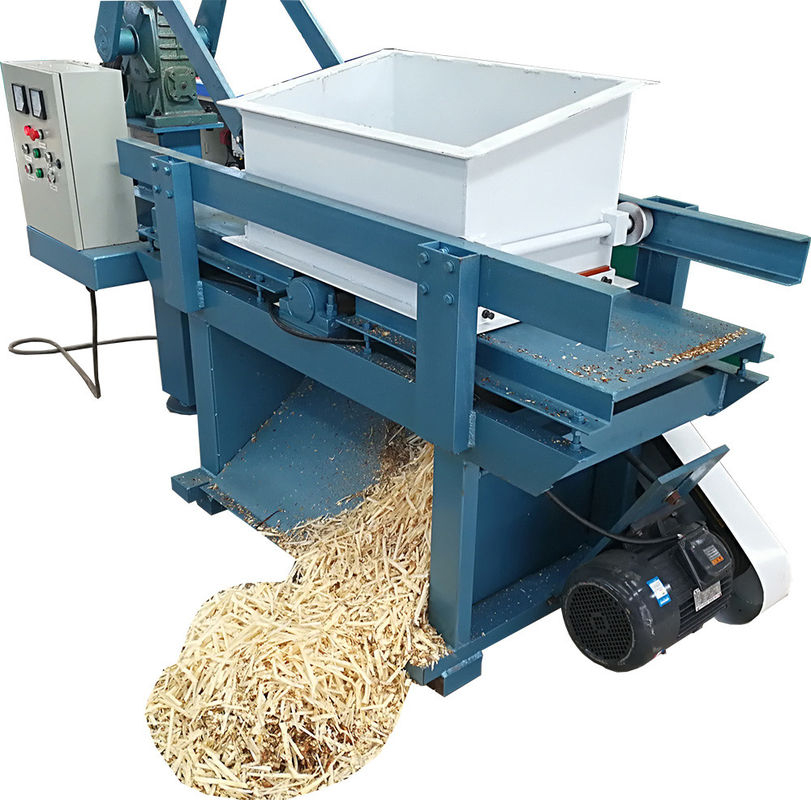

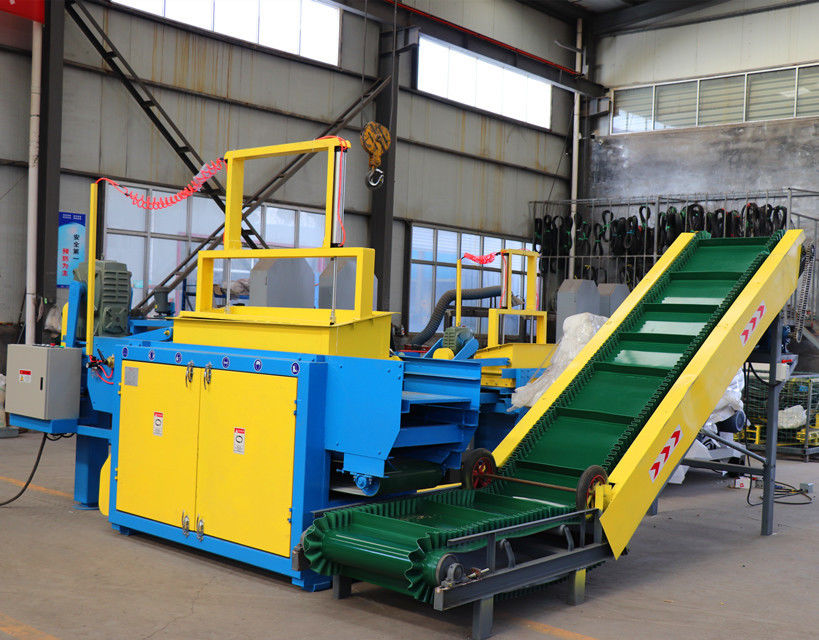

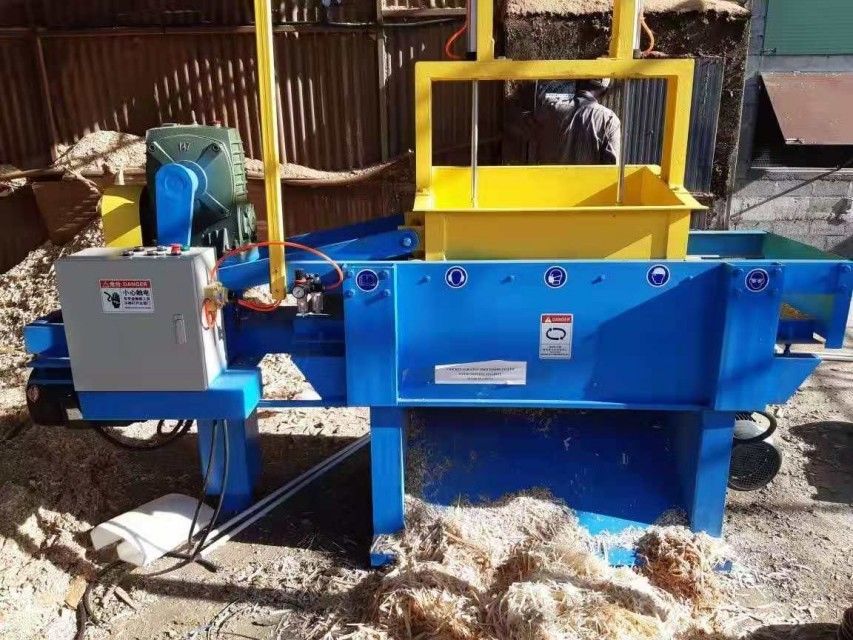

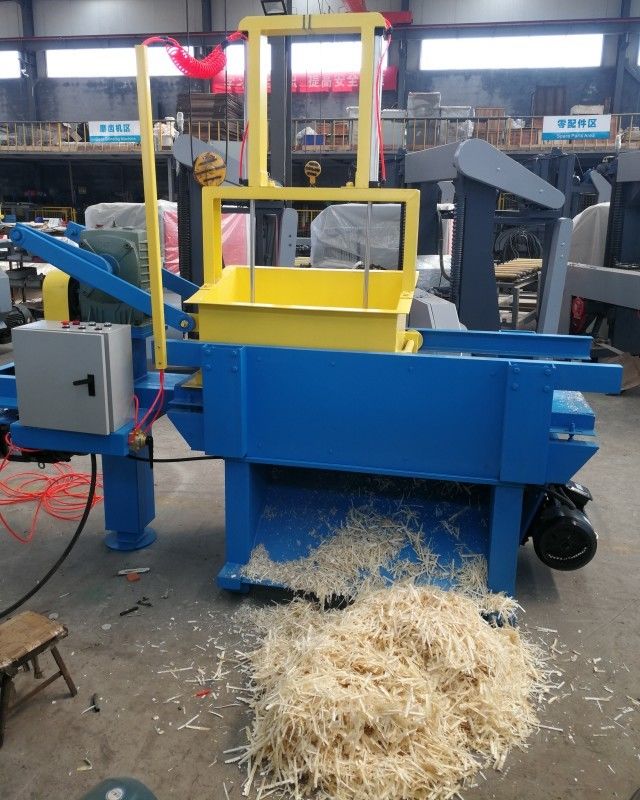

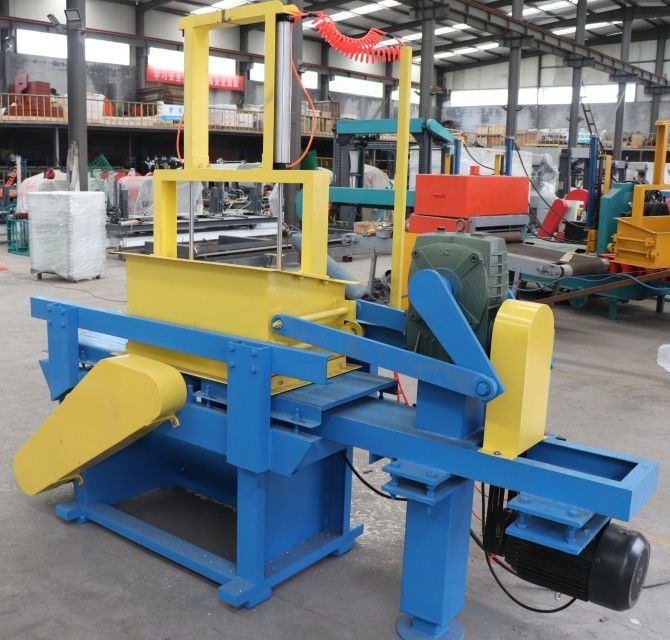

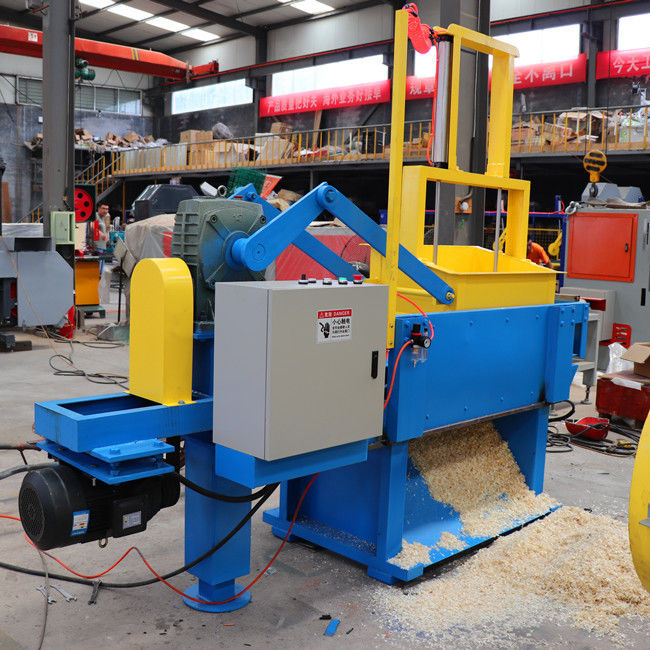

Detailed Images:
Model SHBH500-6
Model SHBH500-2
Related Machines:
Wood shavings/sawdust press baler
Technical data:
| Model | SHDB-20 | SHDB-1 |
| Main electric motor | 22KW | 22KW |
| Hydraulic pump | 25VQ25 | 25VQ25 |
| Hydraulic valve | LQ32 | LQ32 |
| Hydraulic oil tank | ɸ140 &ɸ160 | ɸ80&ɸ125&ɸ63 |
| Electrical System | PLC control | PLC control |
| Operation system | manual +automatic | manual +automatic |
| Filter | 400L/min | 400L/min |
| Cooling system | air cooling | air cooling |
| Heating system | 3kw | 3kw |
| Oil tank | 500L | 260L |
| bale size | 40x60x20cm | 350*130*60mm |
| bale weight | 15 to 20kgs/bag | 1kg/bag |
| Capacity | 60-80bags/hour | 200bags/hour |
