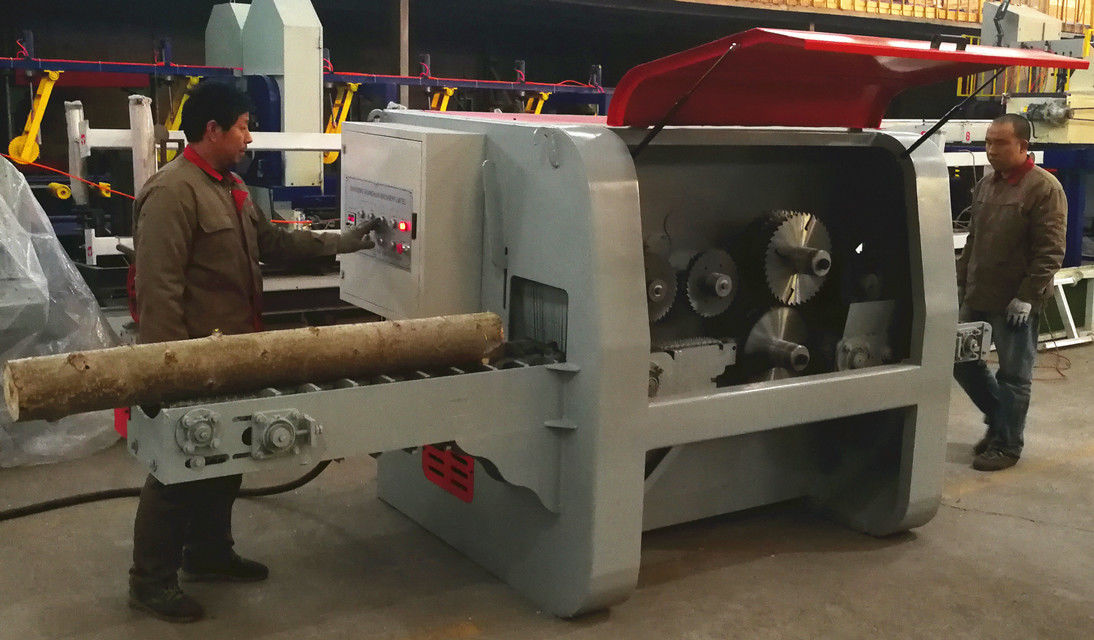

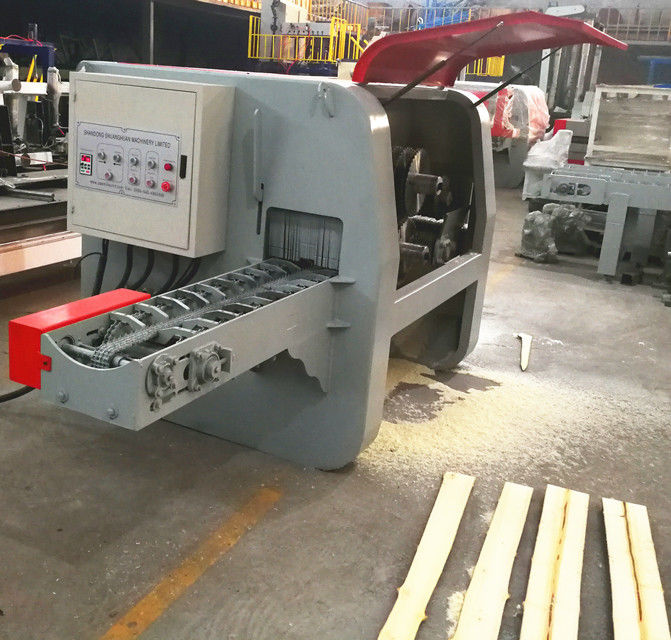

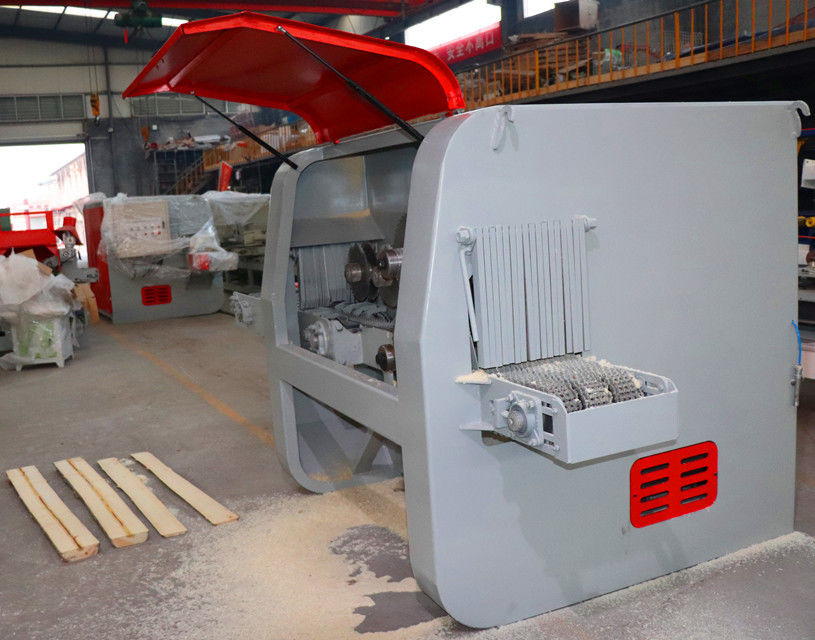

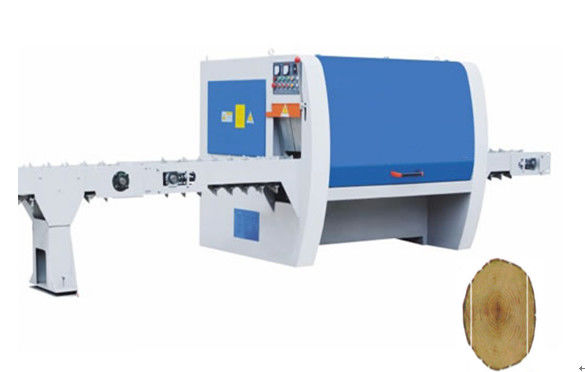

Log Cutting Multiple Blade Ripsaw
Specifications:
| Model | SHYM200 | SHYM250 | SHYM300 |
| Sawing log diameter | 80-200mm | 120-250mm | 150-300mm |
| Min sawing log length | 600mm | 600mm | 600mm |
| Blade cooling | Shaft center spraying water to cool | ||
| Main motor power | 22KW X 2 | 30KW X2 | 37KW X2 |
| Feeding motor | 1.5KW | 1.5KW | 2.2KW |

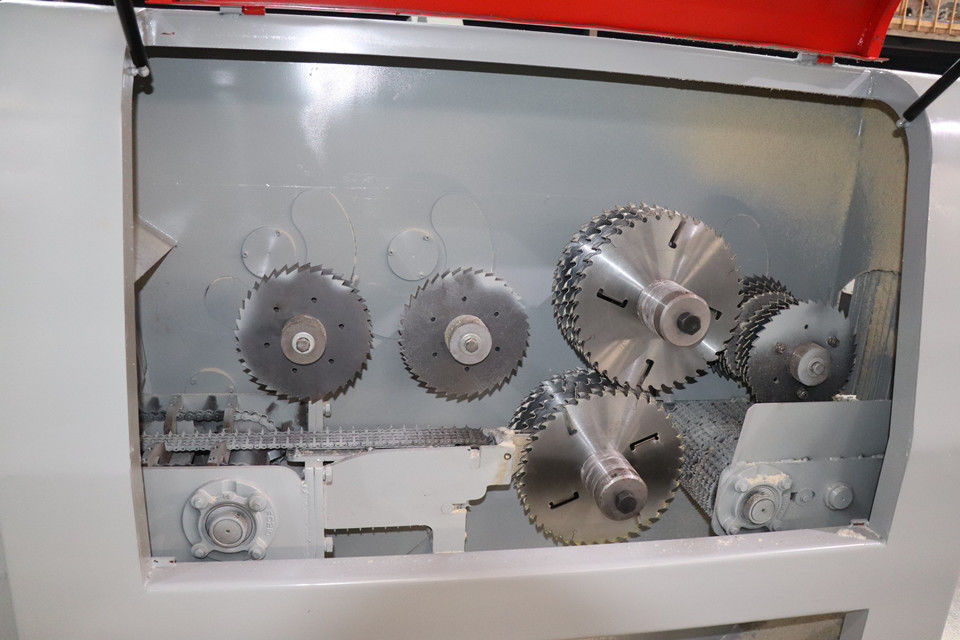

| Saw blade diameter | 305mm | 355mm | 405mm |
| Weight | 2000kg | 2500kg | 2800kg |
| Model | SHYM350 | SHYM400 | SHYM450 |
| Sawing log diameter | 200-350mm | 250-400mm | 300-450mm |
| Min sawing log length | 600mm | 600mm | 600mm |
| Cooling method | Shaft center spraying water to cool | ||
| Main motor power | 45KW X2 | 55KW X 2 | 55KW X2 |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 480mm | 520mm | 600mm |
| Weight | 3200kg | 3500kg | 3800kg |
|
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding |
|||
