Home /Products/Multi Rip Saw Machine/Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

1 unit

MOQ

USD38,000-USD95,000/Unit

Price

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Multiple Blade Rip Saw Production Line

Condition: New

Voltage: 380v/3ph/50hz Or As Customer Needs

Max. Sawing Log Diameter: 500mm

Sawing Log Length: 3meters Or As Customer Needs

Blade Cooling: Water Cooling

Operation: Automatic

Others: We Design Line As Customer Detailed Requirements

Guarantee: 1 Year

After-sales Service: Video Technical Support, Working Test Before Delivery

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: SHYM200,SHYM250, SHYM300, SHYM450

Payment & Shipping Terms

Packaging Details: film wrapped

Delivery Time: within 20 days

Payment Terms: T/T

Supply Ability: 100units/year

Gallery

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

Product Description

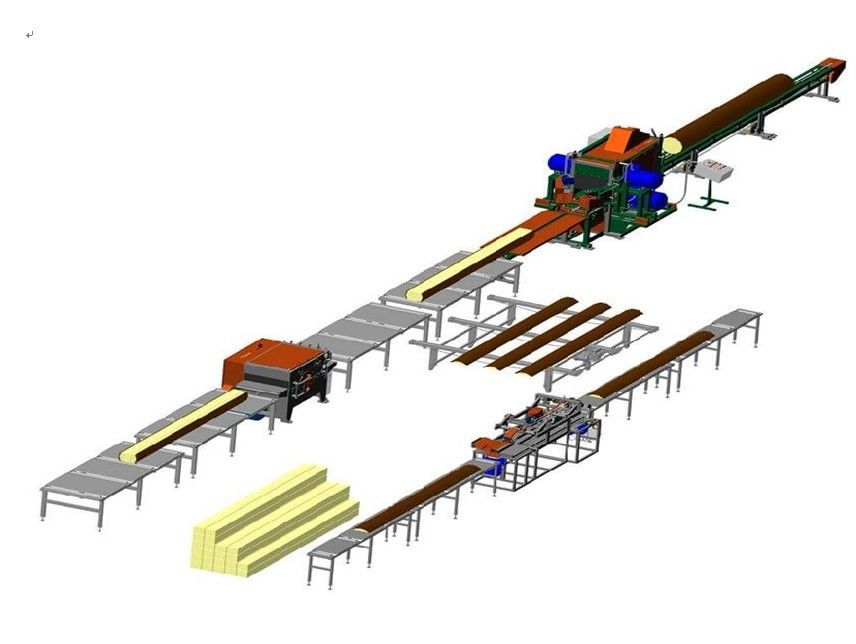

Multiple Blades Rip Sawmill Production Line
The max sawing wood diameter is 200mm , Max Loading Log Length3000mm

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 0

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 1

1	Log Loading Deck
	Max Loading Log Length	2500MM
	Max Loading Log Diameter	350MM
	Horizontal Loading Belt	2
	Distance Between Loading Belt	800mm
	Motor Power	2.2KW
	Log Cutting Multiple Blades Sawmill
	Sawing Log Diameter	200mm
	Min Sawing Log Length	1000mm
	Spindle speed	2800r/min
	Main Motor power	*22KW2**
	Feeding Motor	2.5KW
	Saw Blade Quantity	2-10 pieces
	Saw Blade Diameter	305mm
	Variable Frequency Speed Adjustable Feeding,
	Axles Center Water Cooling System,
	one set Spacer pad,6 pieces saw blade.
	Circular Saw Blade Diameter	305 MM

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 2

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 4

2	Wood conveyor
	Max Loading Log Length	2500MM
	Horizontal Loading Belt	2
	Distance Between Loading Belt	800mm
	Motor Power	2.2KW

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 5

3,6	CS600-6000 Conveyor Belt (With power)
	Length	6000mm
		600mm
	Width
		1.5KW

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 6

5	Multiple Blade Saw Machine
	Max. Sawing width	250mm
	Max. sawing thickness	120mm
	Min Sawing length	600mm
	Spindle Speed	2800 r/min
	Motor	*22KW2**
	Feed Motor	2.2KW
	Saw Blade Diameter	230mm
	Saw Blade Quantity	2-10 pieces
	Cooling Water Pressure	0.3-0.6PA
	Including:Variable Frequency Speed Adjustable Feeding,
	Axles Water Cooling System,Spacer pad,6 pieces saw blade.
	Circular Saw Blade Diameter	230MM

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 7

7,9	Offcuts Circular Sawmill
	Max Sawing Wood Width	200MM
	Motor Power	*7.5KW2**
	Feeding Speed	Variable Frequency
	Circular Saw Blade Diameter	305MM
	Multiple Blade Rip Sawmill
	Max Sawing Wood Thickness	50mm
	Max Sawing Wood Width	380mm
	Saw Blade Diameter	230mm
	Motor Power	7.5KW
	Saw Blade Quantity	1P-5P
	Spindle Speed	5800/min
	Circular Saw Blade Diameter	230mm

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 8

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 9

10	Automatic Board Edger
	Max. sawing thickness	35mm
	Max Cutting Log Length	3000mm
	Max Cutting Plank Width	200mm
	saw heads quantity	4
	Motor Power	2.2KW*4

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 10

4,8	CS600-2000 Conveyor Belt (No power)
	Length	2000mm
		600mm

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 6

11	Automatic Carbide Circular Saw Blade Sharpener
	Saw Blade Diameter	125-800MM
	Feeding Speed	0-24 Teeth /Minute
	Grinding Wheel	150MM
	Grinding Wheel Motor	370W

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines 12
