Name: Multiple Blades Multi Ripsaw Wood Circular Saw Machine 7.5KW-13KW
Brand: Weifang Jiuyi Information technology co., LTD
SKU: BC380 BC400 BC500
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Multi Ripsaw

Condition: New

Type: Circular Saw

Use: Woodworking

Style: Vertical

Usage: Cutting Lumber Into Slippers

Power(W): 7.5-13KW,3phase

Dimension: 1200*1200*1500

Weight: 150KG

Warranty: 1 Year

Highlight:

Multiple Blades Multi Ripsaw

Multi Ripsaw Wood Circular Saw Machine

7.5KW Multi Ripsaw

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: BC380 BC400 BC500

Payment & Shipping Terms

Packaging Details: wooden pallet or iron frame packings

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 2000 Set/Sets per Year

Gallery

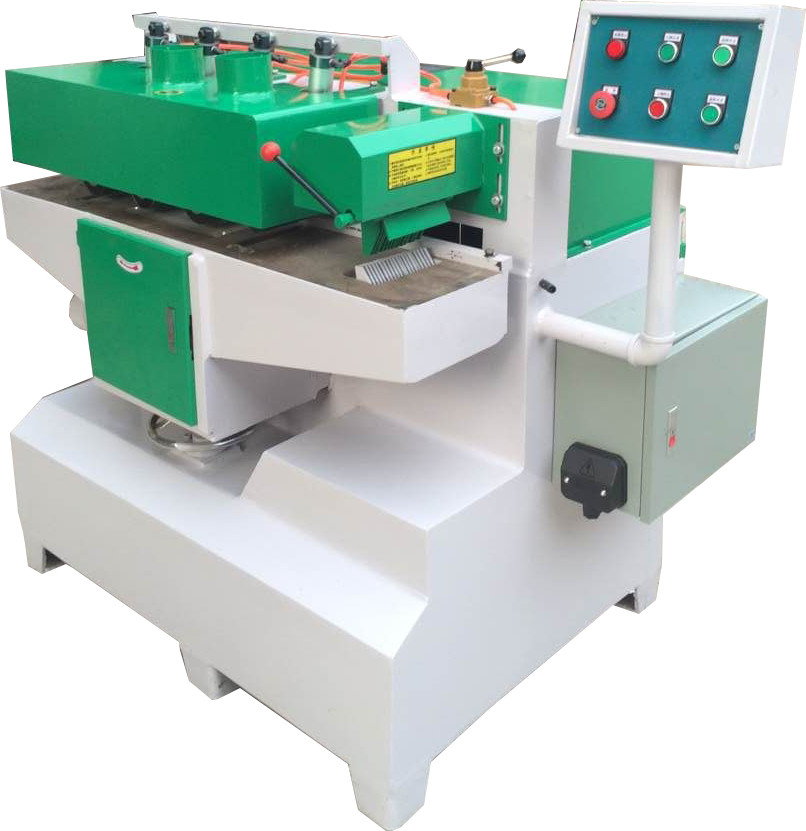

Multiple Blades Multi Ripsaw Wood Circular Saw Machine 7.5KW-13KW

Product Description

wood cutting saw multi blades rip saw machine,Multiple Blades Saw Machine

Easy Usage Multi Blade Rip Saw

Introduction:

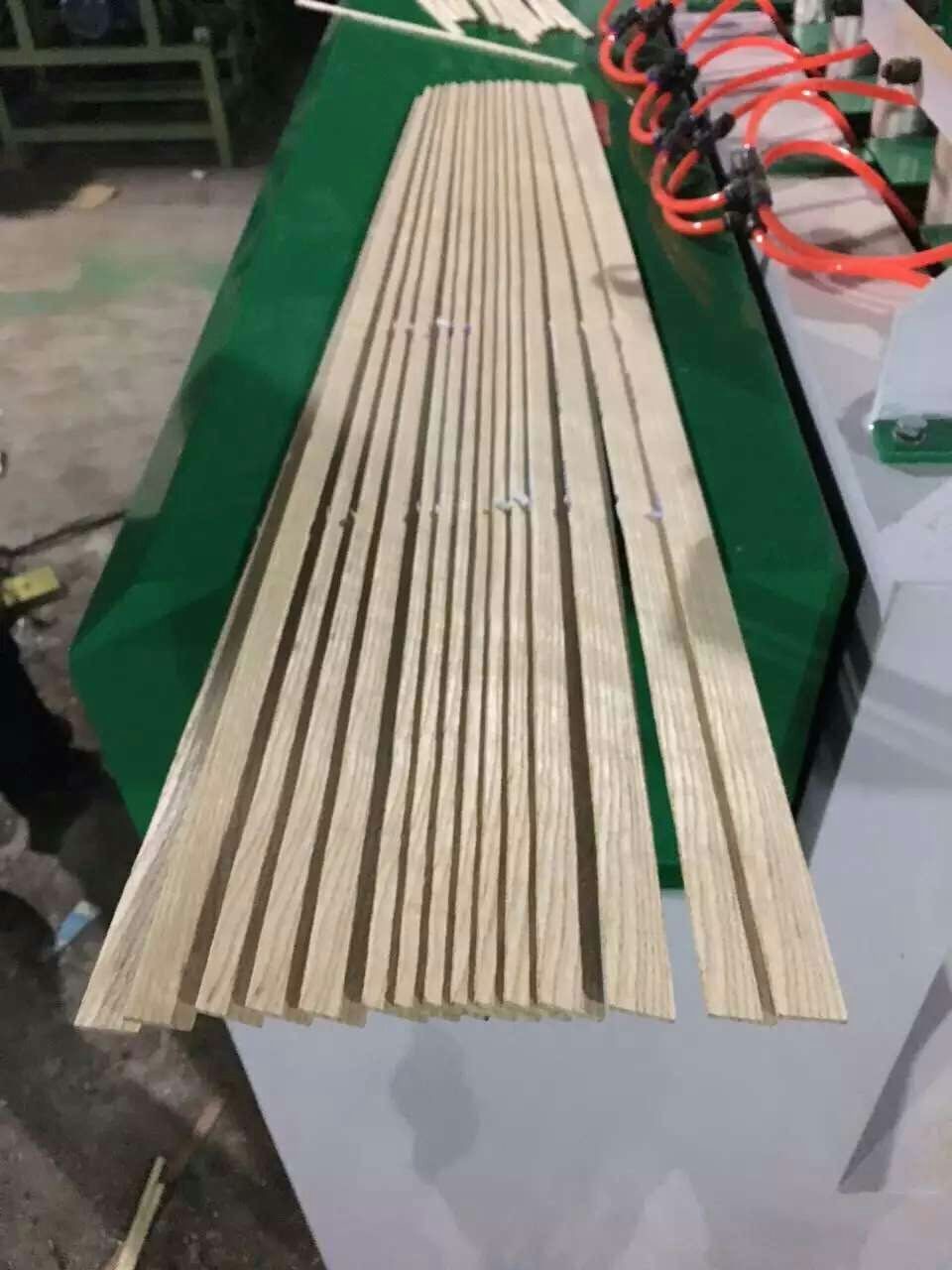

It is used to saw thin boards into small slippers
With carbide circular blade for hard wood cutting
We ship the saw machine in whole body, no need installation .
Specification:

Multi-chip Sawmill
Technical Parameter	BC380	BC400	BC500
Max sawing wood thickness	60mm	30mm	60mm
Max sawing wood width	380mm	400mm	500mm
Saw diameter	230mm	230mm	230mm
Install power	7.5KW	5.5KW	13KW
Saw number	1P-5P	1P-5P	1P-5P
Spindle speed	5800/min	5800/min	5800/min

Multiple Blades Multi Ripsaw Wood Circular Saw Machine 7.5KW-13KW 0

Multiple Blades Multi Ripsaw Wood Circular Saw Machine 7.5KW-13KW 1

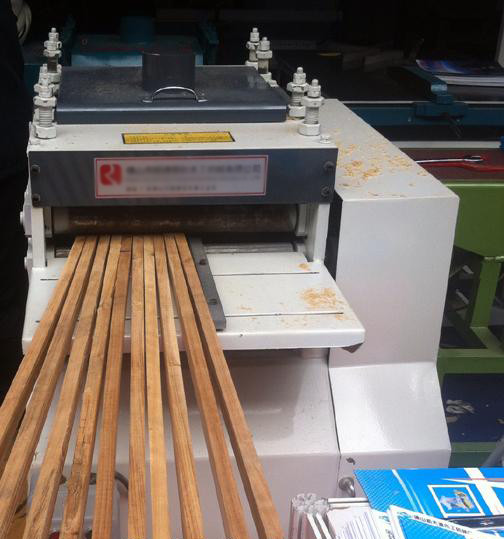

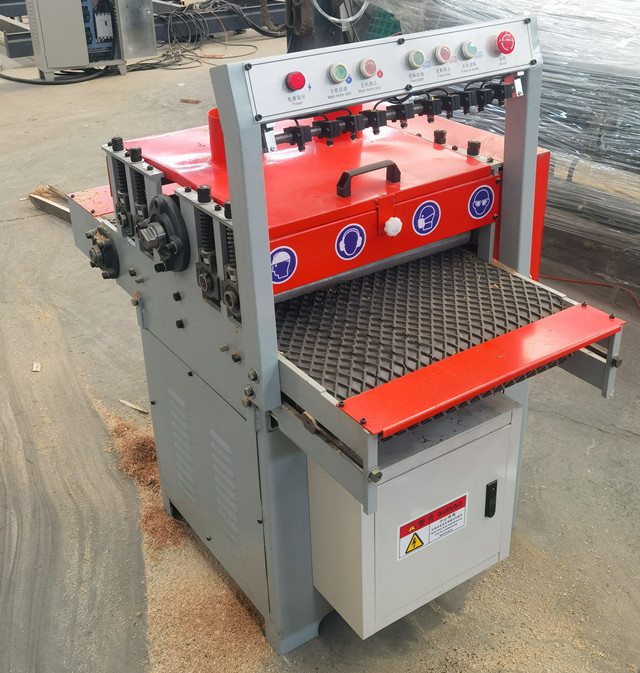

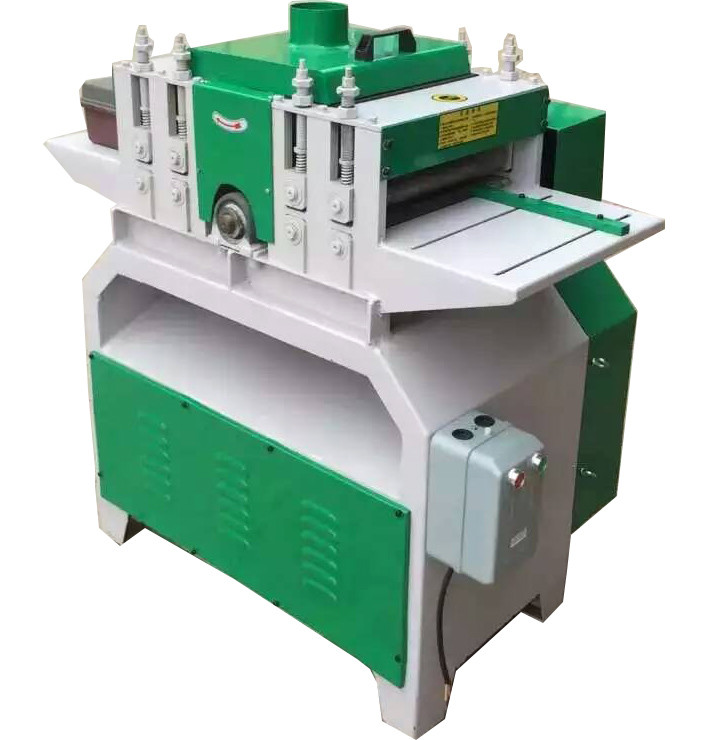

Single Spindle Multiple Blade Rip Saw

Technical data

Model	BC150	BC200	BC300
Max Sawing Wood Width	150mm	200mm	300mm
Max Sawing Wood Thickness	2-65mm	2-65mm	2-65mm
Min Sawing Wood Length	200mm	200mm	200mm
Saw Blade Diameter	250mm	250mm	250mm
Main Motor Power	11kw	15kw	18.5kw
Pneumatic Press Roller,Variable Frequency Speed Adjustable Feeding

Multiple Blades Multi Ripsaw Wood Circular Saw Machine 7.5KW-13KW 2

Multi blades Ripsaw for Round Log Cutting

1.Cut logs into planks at several pieces per time.

2.With log centering feeding conveyor

3.Automatic controlling

Specifications:

Model	SHYM150	SHYM200	SHYM240	SHYM260	SHYM285	SHYM330
Sawing Log Diameter	20-150mm	60-200mm	80-240mm	100-260mm	130-285mm	150-330mm
MinSawing Log Length	600mm	600mm	600mm	600mm	600mm	600mm
Main Motor power	18.5KW*2	22KW*2	30KW*2	30/37KW	30/37KW	37KW*2
Spindle Diameter	50mm	50mm	60mm	60mm	60mm	70mm
Saw Blade Diameter	255mm	305mm	355mm	380mm	405mm	450mm
Weight	1570KG	1720KG	2200KG	2300KG	2350KG	2550KG

Model	SHYM340	SHYM360	SHYM400	SHYM430	SHYM480
Sawing Log Diameter	150-340mm	170-360mm	180-400mm	200-430mm	250-480mm
Min Sawing Log Length	600mm	600mm	600mm	600mm	600mm
Main Motor power	45KW/55KW	55KW*2	55KW*2	75KW*2	75KW*2
Spindle Diameter	80mm	80mm	80mm	100mm	100mm
Saw Blade Diameter	480mm	500mm	550mm	600mm	650mm
Weight	2650KG	2680KG	3500KG	3880KG	4100KG

Multiple Blades Multi Ripsaw Wood Circular Saw Machine 7.5KW-13KW 3
