Horizontal wood band saw mill / hydraulic bandsaw machine / wood saw machines
Hydraulic Automatic Horizontal Band Sawmill
Technical Specifications:
| Model | MJH1000A | MJH700A |
| Max Sawing Wood Diameter | 1000mm | 700mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawn Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4.5 meters | 4.5meters |
| Main Motor Power | 22kw | 18.5KW |
| Hydraulic motor power | 4kw | 3kw |
| Saw Blade Width | 40mm-80mm | 40mm-80mm |
| Machine Length | 6000mm | 6000mm |
| Weight | 3500kg | 3000kg |
| 型 号 | Model | MJH1300E |
| 锯割木材直径 | Max Sawing Wood Diameter | 1300mm |
| 锯轮直径 | Saw Wheel Diameter | 700mm |
| 最大锯割木材厚度 | Max Sawing Wood Thickness | 300mm |
| 锯割木材长度(标准) | Standard Sawing Wood Length | 4000mm |
| 电机功率 | Electric Motor Power | 30kw |
| 升降电机 | Up/Down Electric Motor | 1.5kw |
| 行走电机 | Forward/backward Electric Motor | 2.2kw |
| 锯条宽度范围 | Saw Blade Width | 27mm-75mm |
| 涨紧锯条 | Blade Tension | 液压 Hydraulic |
| 机床长度 | Machine Length | 5800mm |
| 重量 | Weight | 2500kg |

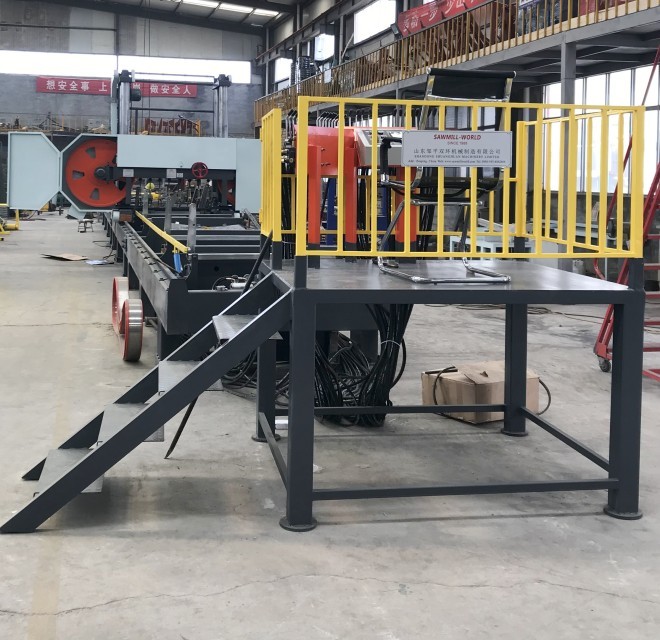

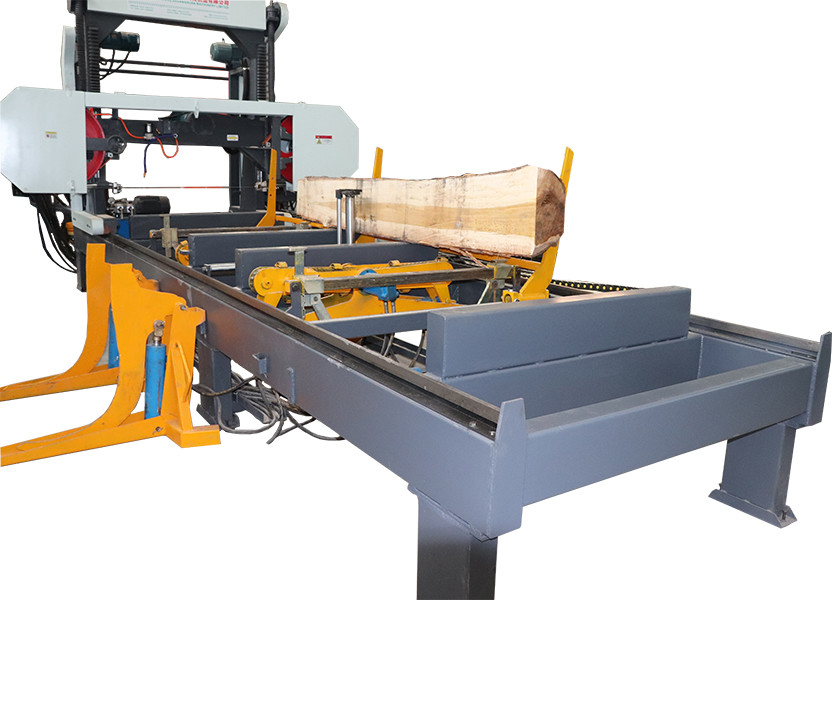

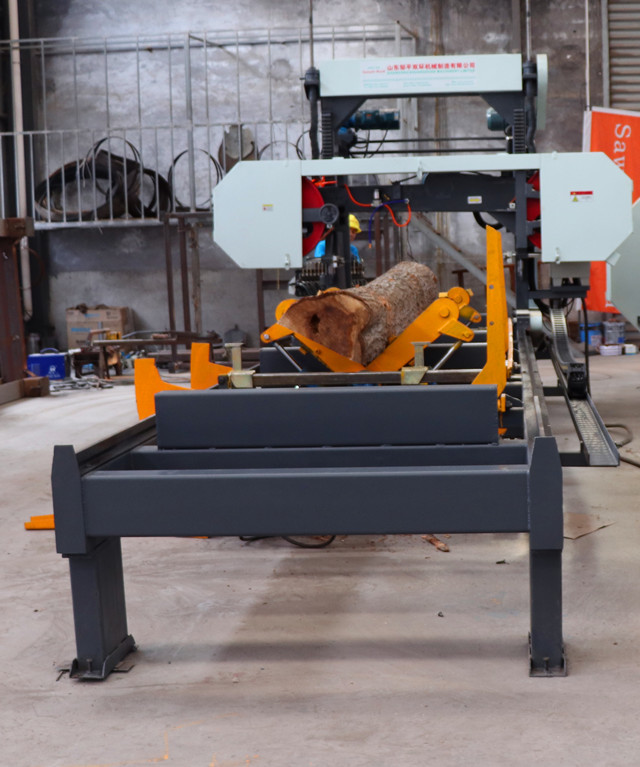

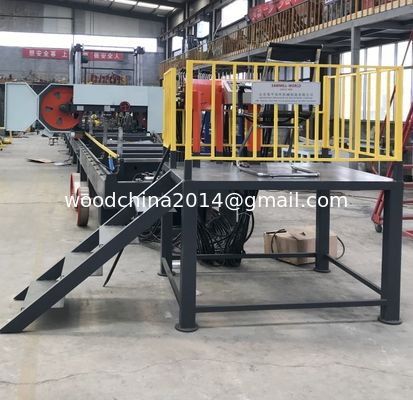

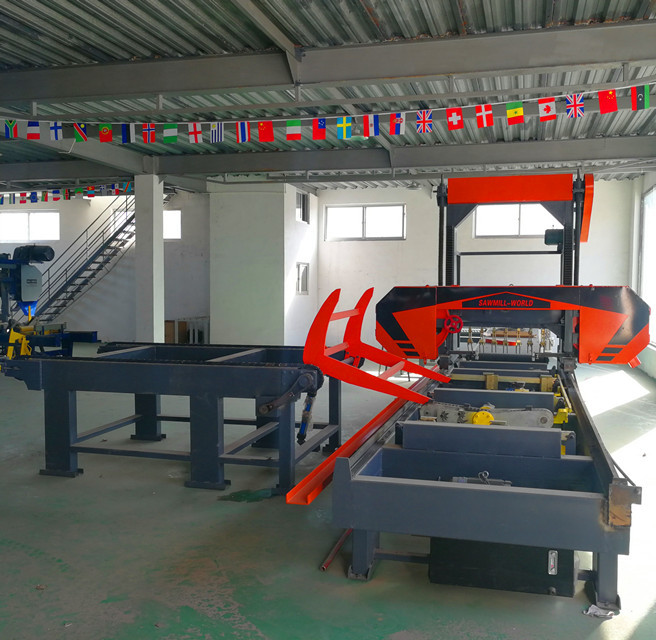

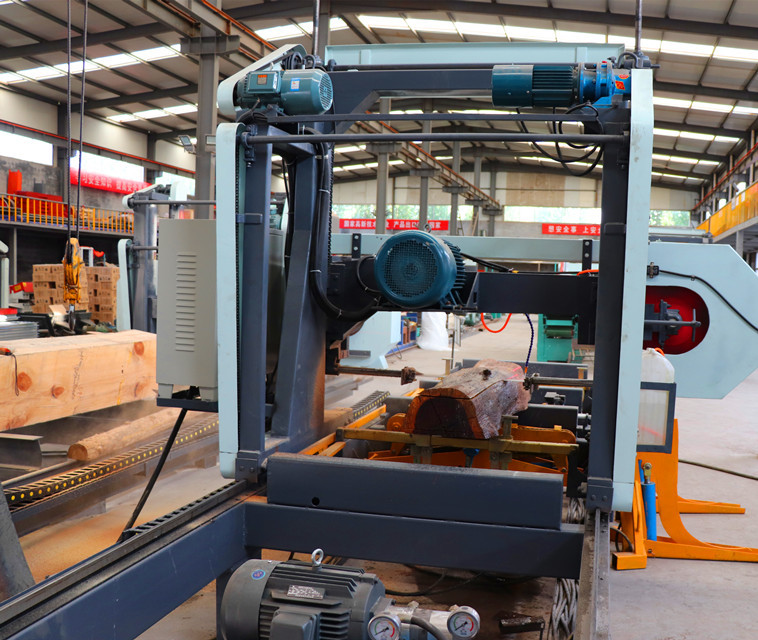

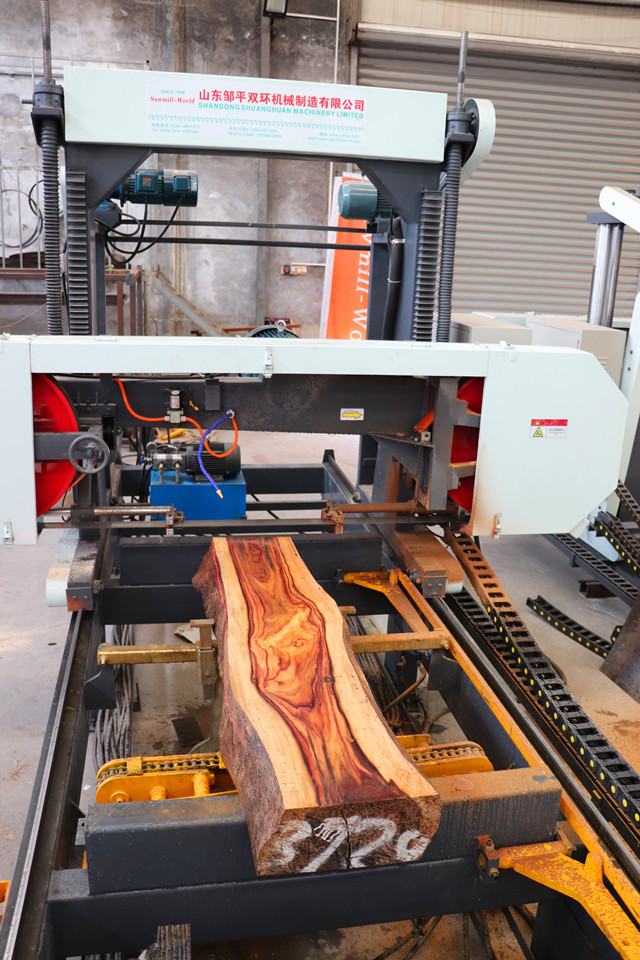

Detailed Image
Related Products:
Heavy duty big log cutting hydraulic sawmill machine
|
Model
|
MJH1200E
|
MJH1500E
|
|
Max Sawing Wood Diameter
|
1200mm
|
1500mm
|
|
Saw Wheel Diameter
|
1000mm
|
1070mm
|
|
Max Sawing Wood Thickness
|
400mm
|
400mm
|
|
Standard Sawing Wood Length
|
4500mm
|
4500mm
|
|
Electric Motor Power
|
37kw
|
45kw
|
|
Up/Down Electric Motor
|
2.2kw
|
2.2kw
|
|
Forward/Backward Electric Motor
|
3kw
|
3kw
|
|
Band Saw Blade Width
|
125-150mm
|
125-150mm
|
|
Band Saw Blade Tension
|
Electric
|
|
|
Machine Length
|
7000mm
|
7000mm
|
|
Weight
|
7000kg
|
8500kg
|
Board Edger Saw
