Technical Data:
|
Model
|
MJH1200E
|
MJH1500E
|
|
Max Sawing Wood Diameter
|
1200mm
|
1500mm
|
|
Saw Wheel Diameter
|
1000mm
|
1070mm
|
|
Max Sawing Wood Thickness
|
400mm
|
400mm
|
|
Standard Sawing Wood Length
|
4500mm
|
4500mm
|
|
Electric Motor Power
|
37kw
|
45kw
|
|
Up/Down Electric Motor
|
2.2kw
|
2.2kw
|
|
Forward/Backward Electric Motor
|
3kw
|
3kw
|
|
Band Saw Blade Width
|
125-150mm
|
125-150mm
|
|
Band Saw Blade Tension
|
Electric
|
|
|
Machine Length
|
7000mm
|
7000mm
|
|
Weight
|
7000kg
|
8500kg
|

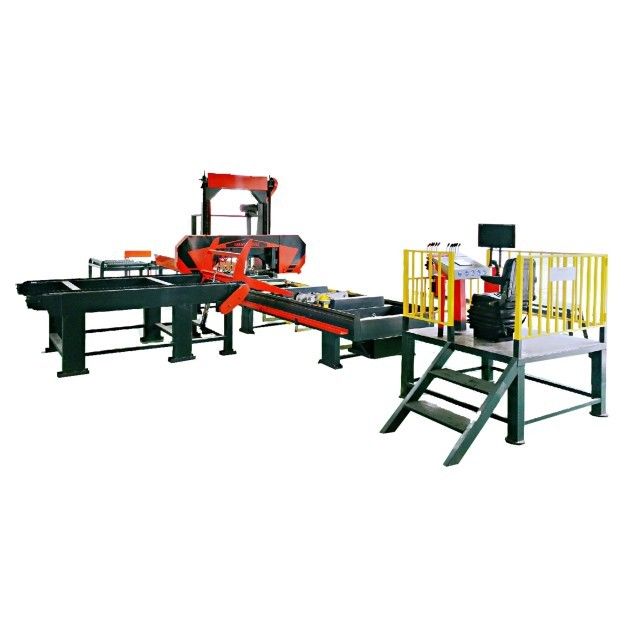

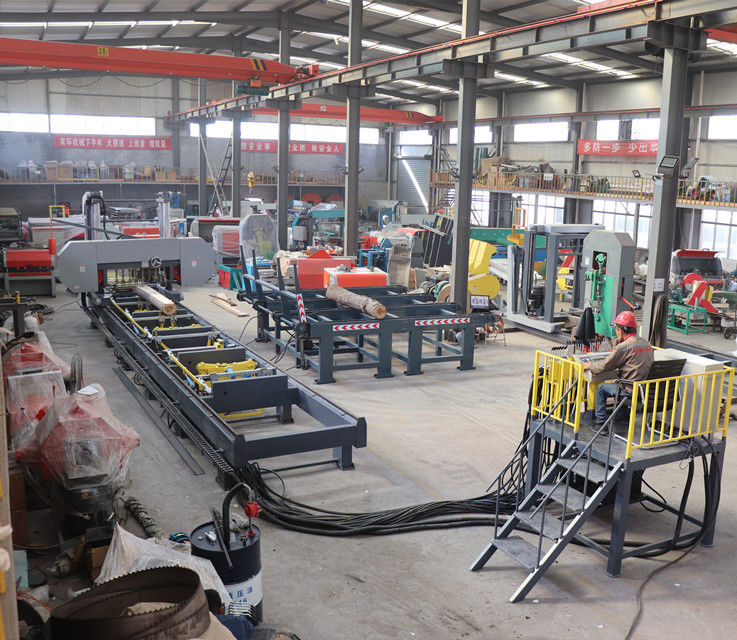

MJH1500E Hydraulic Auto Sawmill For log max.diameter 1500mm in length 6m

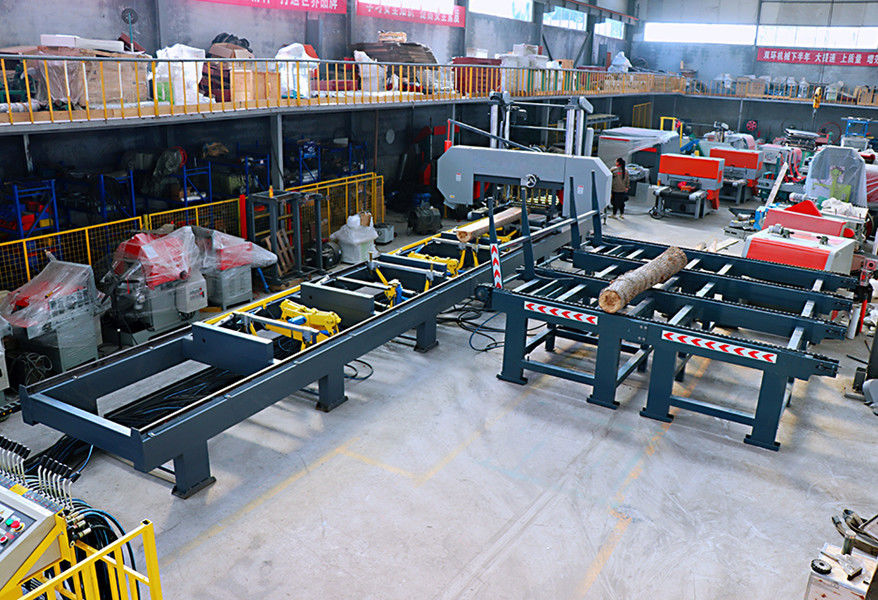

| 1.log loading deck | |
| Conveyor length | 5meters |
| Conveyor total width | 4meters |
| Feeding type | Frequency auto feeding & speed adjustable |
| Loading mode | Pneumatic |
| Feeding mode | Chain feeding |

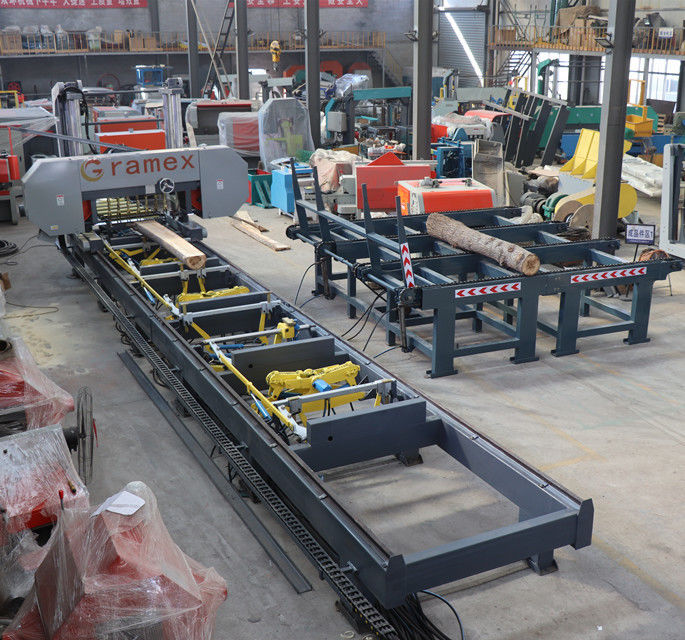

| 2.MJH1500E Hydraulic Horizontal Band Sawmill | |
| Sawing log max. diameter | 1500mm |
| Sawing log max.length | 6meters |
| Saw wheel diameter | 1070mm |
| sawn board thickness range | 2-400mm |
| Main motor power | 45kw |
| Saw head lift up/down power | 2.2kw |
| Saw head walking power | 3kw |

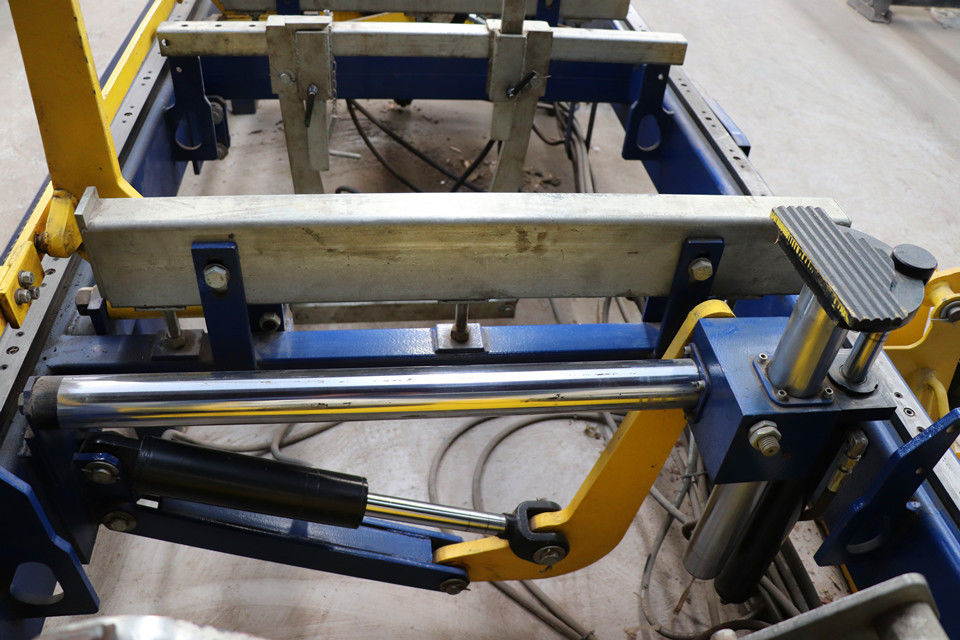

| Hydraulic chain rotation | 2sets |
| Blade tensioning | Electrical |
| Sawn sizes setting | PLC touching screen |
| Saw head walking | Frequency auto feeding |
| Machine length | 8500mm |
| 3.Roller Conveyor | |
| Screw roller conveyor length | 10meters |
| Conveyor width | 1500mm |
| Motor power | 5.5kw |
