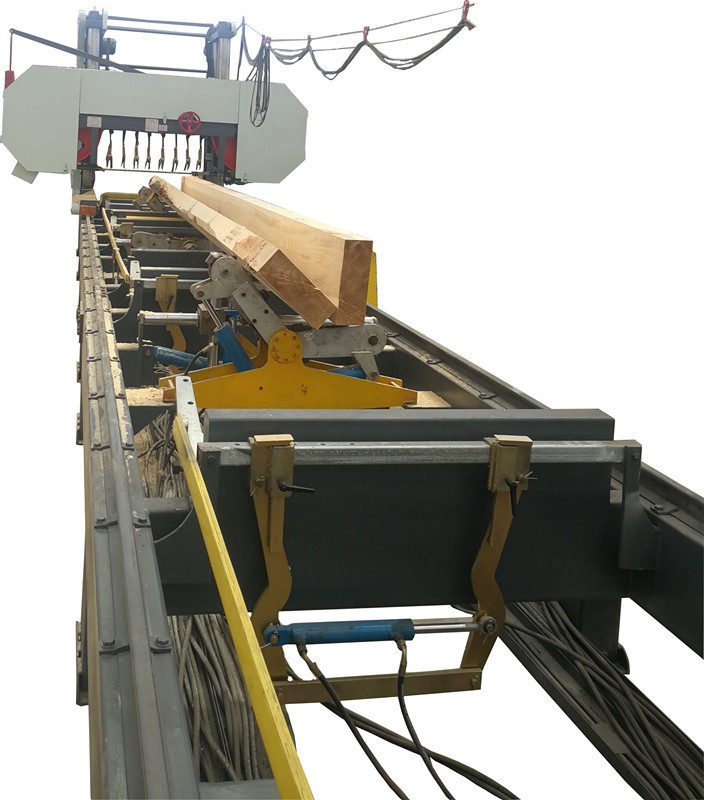

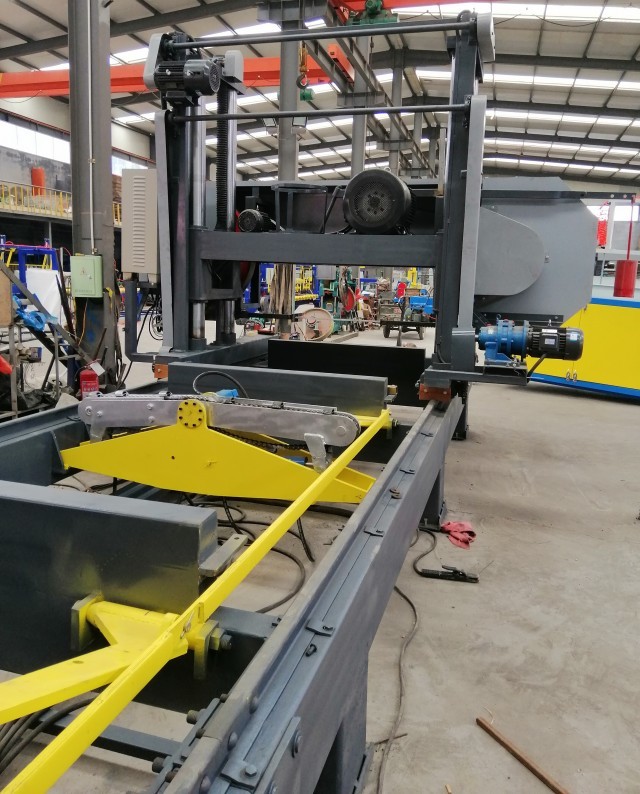

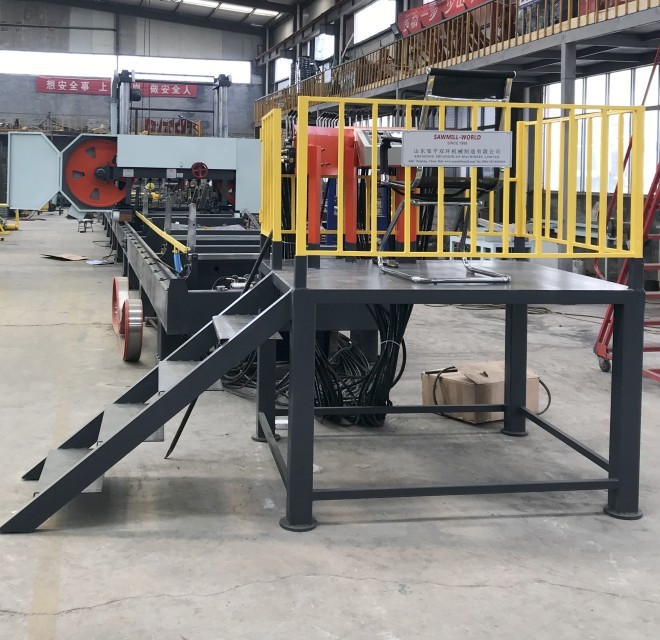

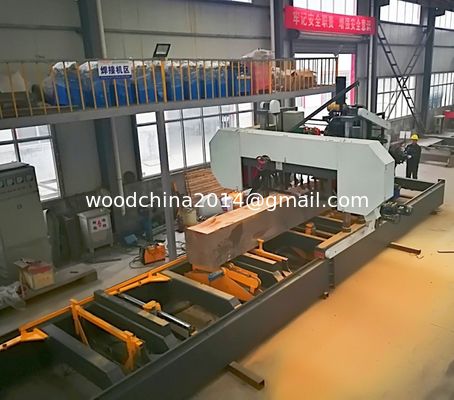

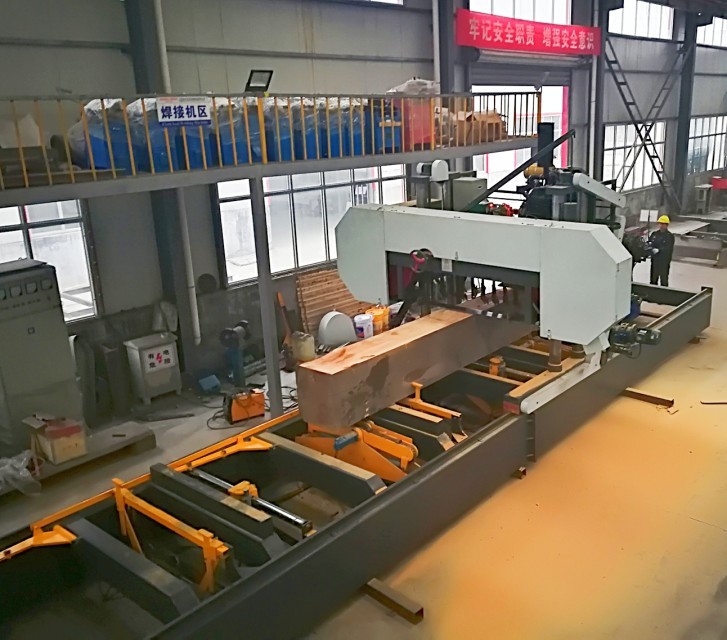

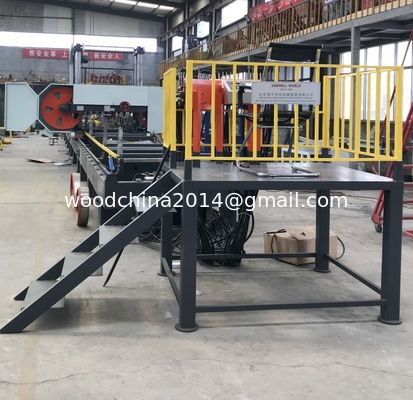

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control . Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .
Key features:
Technical Data:
|
Model
|
MJH1200E
|
MJH1500E
|
|
Max Sawing Wood Diameter
|
1200mm
|
1500mm
|
|
Saw Wheel Diameter
|
1000mm
|
1070mm
|
|
Max Sawing Wood Thickness
|
400mm
|
400mm
|
|
Standard Sawing Wood Length
|
4500mm
|
4500mm
|
|
Electric Motor Power
|
37kw
|
45kw
|
|
Up/Down Electric Motor
|
2.2kw
|
2.2kw
|
|
Forward/Backward Electric Motor
|
3kw
|
3kw
|
|
Band Saw Blade Width
|
125-150mm
|
125-150mm
|
|
Band Saw Blade Tension
|
Electric
|
|
|
Machine Length
|
7000mm
|
7000mm
|
|
Weight
|
7000kg
|
8500kg
|

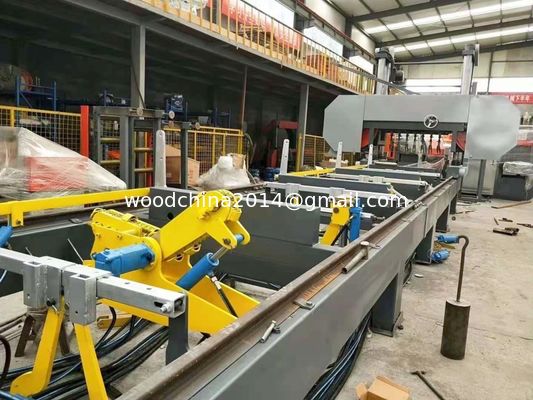

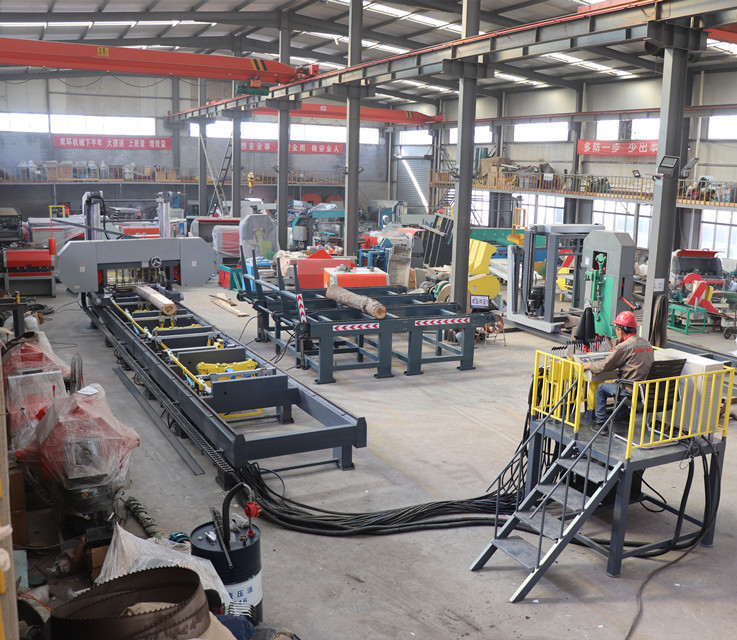

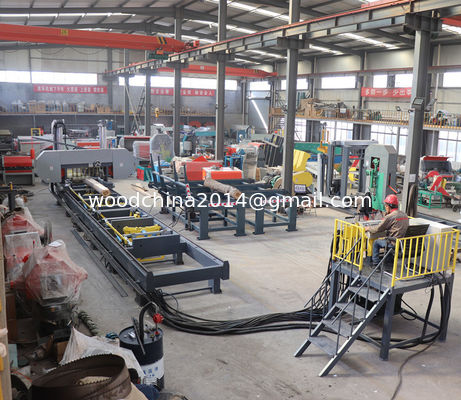

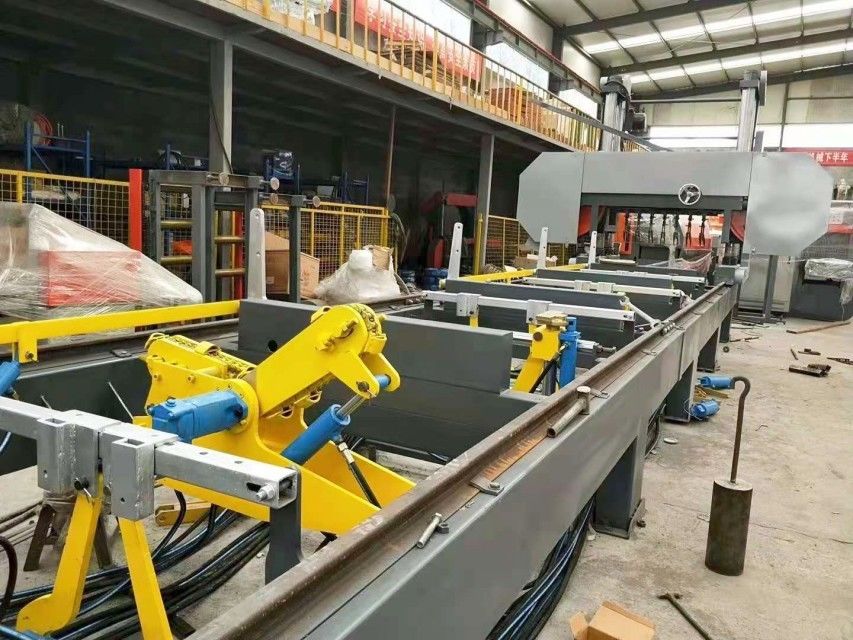

Hydraulic Large Sawmill Automatic Production Line - we design it as customer needs
Optional - Log Loading Rack
Optional - Board Roller Conveyor
Related Saw Machines:
Heavy Duty Double Shaft Multi Blades Rip Saw for planks/lumber
Specifications:
| Model | SH100-400 | SH120-400 | SH160-400 | SH200-400 | SH250-400 | SH270-400 | SH290-400 |
| Sawing width | 350-400mm | 350-400mm | 350-400mm | 350-400mm | 350-400mm | 350-400mm | 350-400mm |
| Sawing thickness | 40-100mm | 50-120mm | 70-160mm | 90-200mm | 110-250mm | 130-270mm | 150-290mm |
| Motor | 30kw*2 | 37kw*2 | 37/45kw | 37/45kw | 45kw*2 | 45/55kw | 55KW*2 |
| Saw Blade Diameter | 180MM | 230mm | 255mm | 230mm | 280mm | 280mm | 380mm |
| Spindle Diameter | 70mm | 70mm | 70mm | 80mm | 80mm | 80mm | 100mm |
| Weight | 2330kg | 2450kg | 2480kg | 2550kg | 2580kg | 2620kg | 2700kg |
Multi Blades Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 230mm | 230mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
